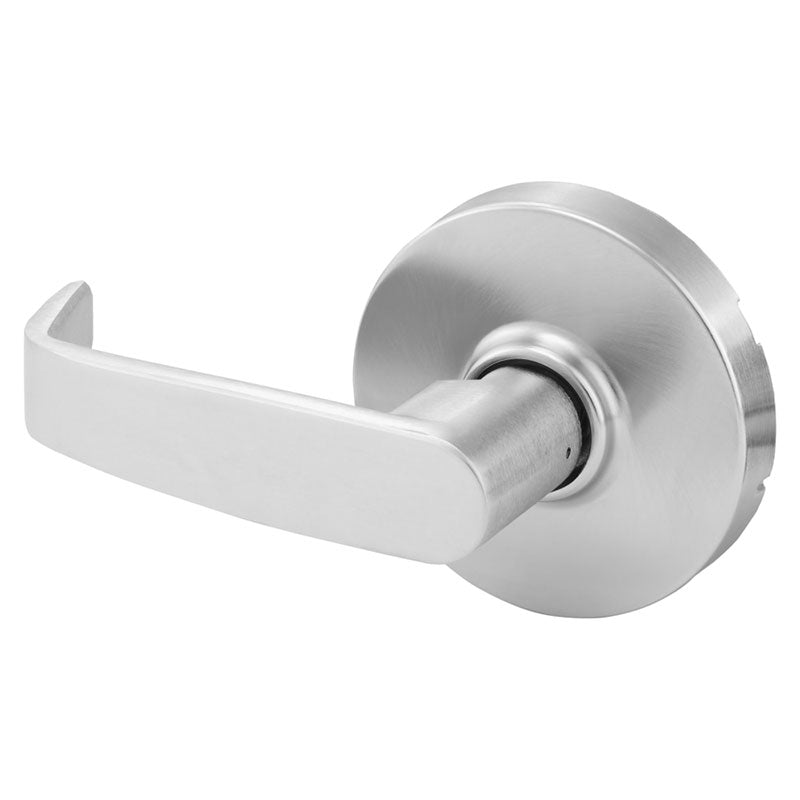

Sargent 10U94-LL-US26D Double Dummy Lever Pulls, Mounted Back to Back, L Rose, L Lever, Satin Chrome

SARGENTSKU: 10U94LLUS26D

Price:
Sale price$317.84/ea
In Stock

Related Hardware

The Sargent 10U94-LL comes from Sargent's Grade 1 10-Line Heavy Duty Locks. This exceptional 10U94 model features a double lever pull design with an L rose and B lever, providing both elegance and functionality. The Dummy Trim Function is specifically designed for situations where an active locking mechanism is unnecessary. Notably, Sargent's 10 Line Series surpasses ANSI/BHMA Grade 1 Certification requirements by an impressive 1.5 times, setting the industry standard for institutional applications like medical, educational, and municipal facilities.


10u94 Sargent cylindrical locks

    For Doors 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard
    1-3/8" (35mm) thick door, 1- Option for Adapter plates
    Backsets 2-3/4" (70mm) backset w/ 1-1/8" front (standard)
    2-3/8" (60mm) backset w/ 1" wide front (specify 20-)
    3-3/4" (95mm) backset w/ 1-1/8" front (specify 23-)
    5" (127mm) backset w/ 1-1/8" Front (specify 25-)
    Cylindrical Housing Steel, zinc dichromate finish
    Front Wrought brass, bronze, and stainless steel
    2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel
    2-1/4" (57mm) x 1" (25mm) (included with 20-)
    Strike Wrought brass, bronze, and stainless steel
    800 curved lip strike — standard
    808 curved lip ANSI strike (28- option)
    Wrought box strike available (WBS- option)
    Hand All 10 Line Locks are non-handed except for the G & Y Levers
    Roses Heavy wrought brass and bronze
    Latch Stainless steel 1/2" (13mm) throw
    Brass 3/4" (19mm) throw for pairs of doors (41- option)
    Cylinder Brass, 6 pins, LA keyway standard
    Keys Two, nickel silver
    Master keying Can be master keyed or grandmaster keyed Construction key systems available
    Finishes 03, 04, 09, 10, 10B, 10BE, 10BL, 14, 15, 20D, 26, 26D, BSP, WSP
    Door Prep ANSI/BHMA A156.115
    Minimum Stile 4-1/2" (114mm)
    ANSI/BHMA Certified ANSI A156.2 Series 4000 – Grade 1
    UL UL listed to the U.S.A. and Canadian safety standards
    Listed for 3-hour doors (double doors require 41- option)
    Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
    ADA All levers conform to ADA requirements for barrier-free accessibility
    California Code Levers (L, J & P) conform to California Administrative Code Title 19 and 24
    Hurricane Code All individual components of a total door opening are required to comply with each code. Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components.
