Sargent Rim & Mortise Cylinder Product Specs below.

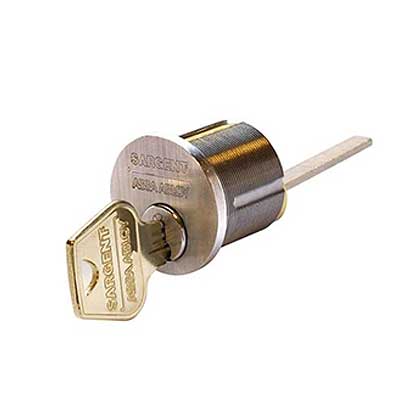

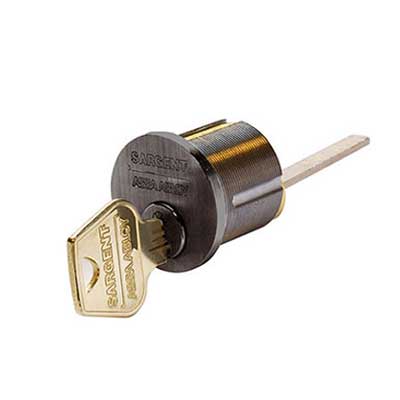

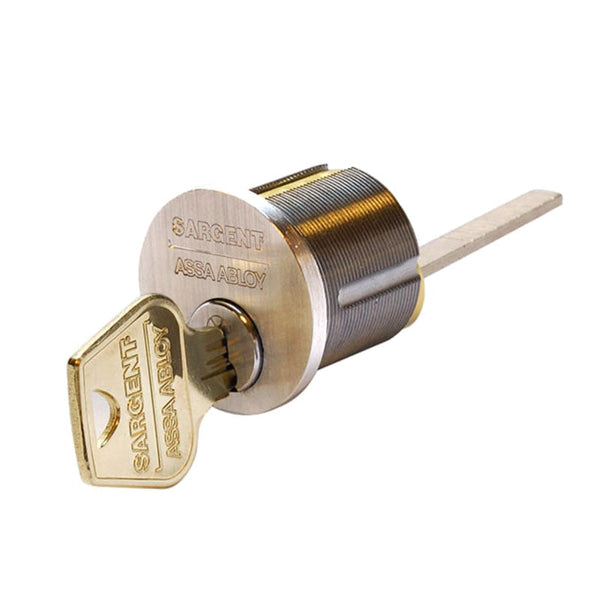

Sargent 34 LA KD

Sargent 34 LA KD Rim Cylinder comes with an LA Keyway, Keyed Different, and 2 Change Keys per Cylinder

Product Specs

Manufacturer	Sargent
Origin	USA
Unit of Measure	Each
BAA Qualified	Yes

Technical Specs

Cylinder Type	Rim Cylinder
Num Pins	6
Std. Keyway	LA
Keying	Keyed Different
Key(s)	Cut
Num of Keys	2
Product Type	Rim Cylinder

Sargent 6034

The Sargent 6034 is an LFIC Rim Cylinder Housing for LFIC Large Format Interchangeable Cores, and comes Less Core with a Plastic Construction core in multiple finishes.

Housing: Solid brass
Cap: Brass, bronze or stainless steel
Furnished standard with No. 97 rosette and compression ring
Includes the same tailpiece and screw hole pattern as the #34 cylinder

Product Specs

Manufacturer	Sargent
SKU	6034
Origin	USA
Unit of Measure	Each
Base Material	Stainless Steel
BAA Qualified	Yes

Technical Specs

Cylinder Type	Sargent LFIC Rim Housing
Product Type	LFIC Rim Housing

Sargent 7034

The Sargent 70-34 rim cylinder housing is an SFIC Small Format Interchangeable Core Housing, sold less core, with a plastic construction core for Rim Exit Device Trims.

Brass cylinder and housing
Furnished with No. 97 rosette, break off screws and back plate
Housing accepts 6 or 7 pin core
Mounting holes located to match SARGENT hardware

Product Specs

Manufacturer	Sargent
SKU	70-34
Unit of Measure	Each

Technical Specs

Product Type

SFIC Rim Housing

Sargent 41 LA KD

Sargent 40 Series Mortise Cylinders are high quality conventional cylinders available in a number of different keyways and finishes.

Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap available in all architectural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.

Technical Specs

Cylinder Type:	Mortise Cylinder
Finishes:	US32D/630 Satin Stainless Steel US32/629 Bright Stainless Steel Finish US3/605 Bright Brass Finish US10B/613 Dark Oxidized Satin Bronze Oil Rubbed BSP Black Suede Powder Coat
Base Material:	Stainless Steel
Pins:	6
Keyway:	LA
Keying:	Keyed Different
Number of Keys:	2
Cylinder Length:	1-1/8"
Cam Type:	Sargent, Yale

Sargent 6042

Sargent 6042 Mortise Cylinder Housing, 1-1/4 In. LFIC, Standard Sargent Cam, Accepts a 6 Pin Interchangeable Core, Furnished Less Core

Sargent mortise cylinder housings are made from solid brass and have a brass, bronze, or stainless steel face cap available in all architectural finishes. They are furnished standard with a number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8" through 3", the minimum length for 7-Pin is 1-1/4". They are provided standard with Sargent offset cam number 13-0664, other cams are available.

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Finish	US32D/630 Satin Stainless Steel US32/629 Bright Stainless Steel Finish US3/605 Bright Brass Finish US10B/613 Dark Oxidized Satin Bronze Oil Rubbed BSP Black Suede Powder Coat
Product Type:	Sargent LFIC Mortise Cylinder Housing

Sargent 7043

Sargent 70-43 Mortise Cylinders 1-3/8" Mortise Cylinder "SFIC" Accepts Small Format 6-7 Pin Interchangeable Core, Furnished Less Core

Sargent 40 Series Mortise Cylinders are high-quality conventional cylinders available in a number of different keyways and finishes.

Sargent mortise cylinders are made from solid brass and have a brass, bronze, or stainless steel face cap available in all architectural finishes. They are furnished standard with a number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8″ through 3″, the minimum length for 7-Pin is 1-1/4″. They are provided standard with Sargent offset cam number 13-0664, other cams are available.

Technical Specs

Cylinder Type:	SFIC Mortise Cylinder
Finish:	US26D/626 Satin Chrome US32/629 Bright Stainless Steel Finish US3/605 Bright Brass Finish US10B/613 Dark Oxidized Satin Bronze Oil Rubbed BSP Black Suede Powder Coat
Base Material:	Stainless Steel
Pins:	6 or 7
Cylinder Length:	1-3/8"
Cam Type:	Sargent, Yale
